| 4600 Series | |
| Equivalent Direct Radiation | 2,000 – 50,000 sq ft (185 – 4645 sq m) |
| Maximum Pump Capacity | 75 gpm (283.9 lpm) |
| Maximum Pump Discharge Pressure | 50 psi (3.4 bar) |
| Motor Power | 1/2 – 3 hp (3,450 rpm) |
| Receiver Capacity | 8 – 95 gal (30 – 359 l) |

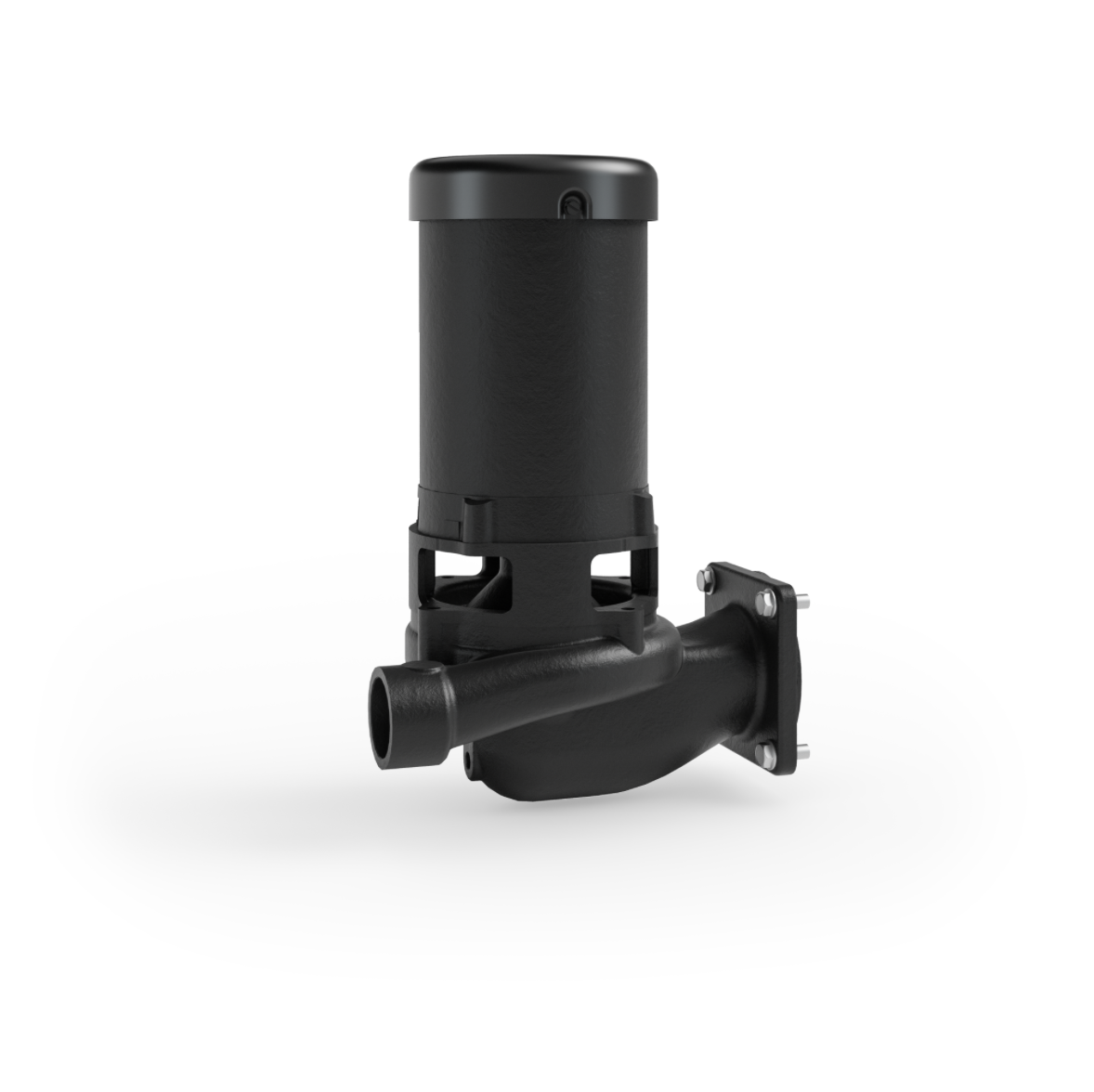

4600 Series Condensate Return Pumps set new standards of performance. Reliable and efficient, each unit features heavy gauge, 3/16″ steel receivers for long operating life. In addition, 3450 RPM motors assure maximum efficiency while maintaining minimum horsepower. The K Series 2′ NPSH Pump is designed to pump hot condensate up to 210 deg. F on floor mounted tank units and up to 212 deg. F on elevated tank units. Available in a wide range of sizes, these U.S. made units have just the right accessories and options to meet your unique needs.
